60Hz HDMI Fiber Optic Transceiver 300g , Single Mode Transceiver SD SDI 400m 1300ft

1. Overview

Newbridge® ND6325 HDMI & VGA & AV to SD/HD/3G-SDI Converts a single channel HDMI signals or VGA signals or AV(CVBS) signal to SD/HD/3G-SDI signals. It integrates SDI Cable equalizer and re-clocker to enhance video performance and stability. Simultaneously, it also Integrates and converts the audio signals of CABS or VGA, then embed it to SDI signal .It supports multiple resolution up to 1920x1080@60HZ. It is without scaler, while it supports the most popular resolutions to ensure high compatibility with wide brands of PC and HDTV. It provides cheaper solution of connecting HDTV and PC and AV(CVBS) to SDI

2．Features

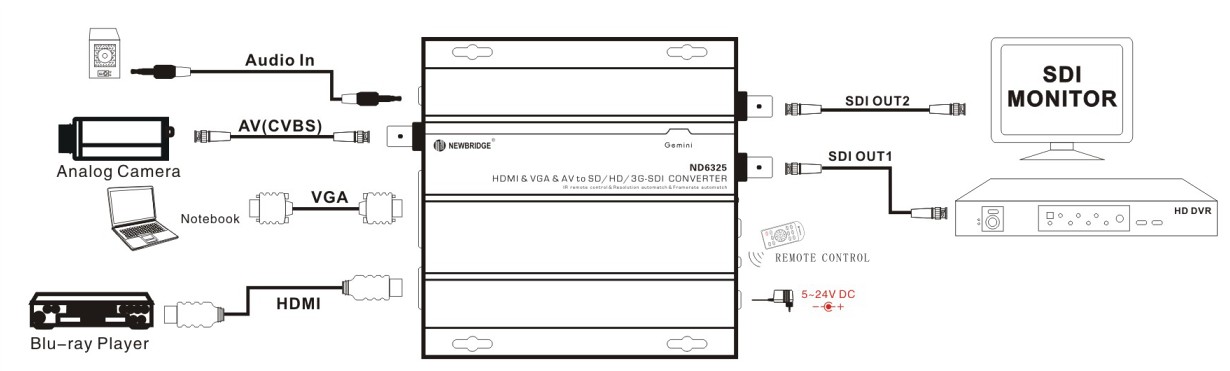

3．Application Diagram

4. Dimensions

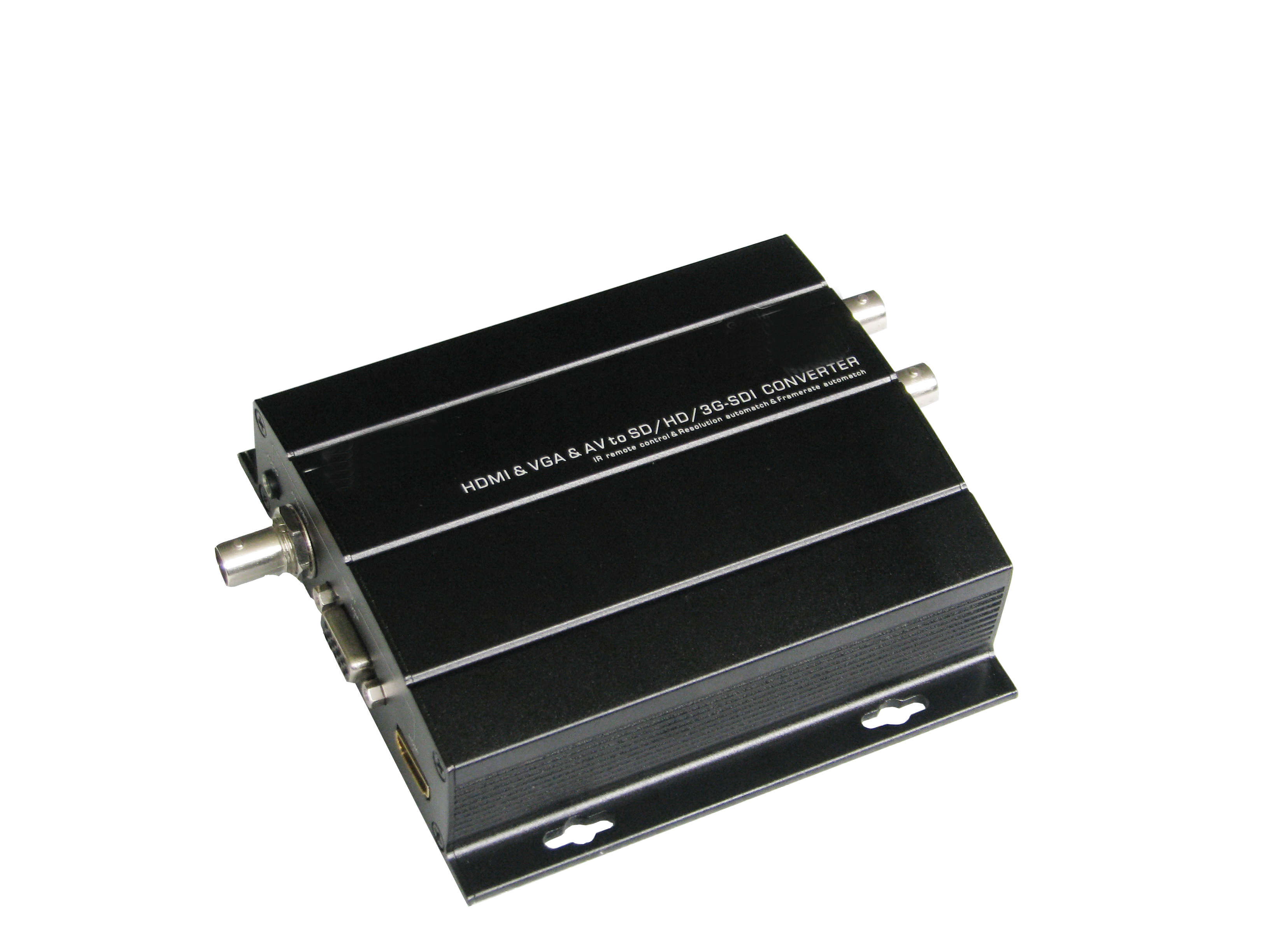

ND6325

5. Specifications

6. Order Information
