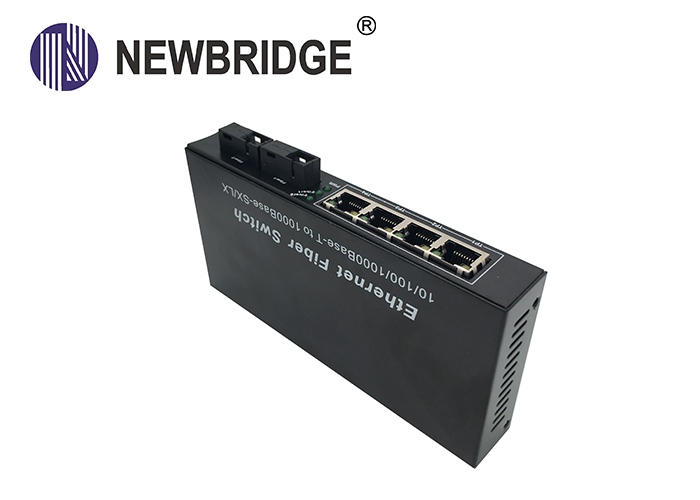

4 RJ45 port 20KM to 120KM FTTH gigabit media converter with 2 fiber
port
The multiport fiber media converter, also named unmanageable fiber
switch, it has the similar functions as normal fiber media
converter, when you use the converter,all the data from different
ports can be shared, realize the data sharing.It is suitable for
intelligent community, it extend the network transmission from100m
to 120km. Also it can be realize the interconnection between
motherboard server, Repeaters, hubs, switches, terminal.Plug and
play design makes easy installation, no onsite adjustment, All the
light, electricity interfaces are in line with international
standards, products applicable to different harsh industrial
environment. The installation and operation procedures of the Fiber
Optic Media Converter are simple and straight forward. Operation
status can be monitored through a set of Diagnostic LED located in
the front panel. Since the data rate is auto-negotiated, no
internal adjustments or setting are necessary. Standard shielded
RJ45 connectors are provided for Cat. 5 compliance.
Features
* Supports 10/100/1000Base-T, 1000Base-X protocol.
2*10/100/1000M-FX port+4*10/100/1000 Base-T
* Flow control for full duplex and half duplex.
* Supports up to 10k byte JUMBO frame.
* Supports Fiber Port Trunking, Increasing Fiber Channel Bandwidth
and Supply Fiber Channel Redundancy.
* Supports Ports Based VLANS and TAG Based VLANS.
* In conformity to safety code of FCC and CE MARK.
* Connector: Multi-UTP RJ-45connector, one or two fiber connector
* Operation mode: full duplex mode or half duplex mode
* Power supply parameter: DC 5V 1A/2A
* Environmental temperature: 0-50℃
* Relative humidity: 5%-90%
* UTP cable: Cat5 UTP cable
* Transfer fiber: multimode(50/125, 62.5/125 or 100/140um); single
mode( 8.3/125,8.7/125, 9/125 or 10/125um).
Specification
| Rate | 10/100M or 10/100/1000M |
| Protocol | supported IEEE802.3 |
| Fiber type | single / dual fiber |
| Optic mode | single / multimode |
| Transmission mode | half / full duplex |
| Ethernet interface | RJ-45 |
| Optic interface | SC/FC/ST |
Optic wavelength | 850nm, 1310nm, 1550nm, 1310nm |
| BER | < 1/1000000000 |
| MTBF | 3 years |
| POWER | 2.5W |
Power supply | AC220V/0.5A,DC-48 V /0.5A, DC5V/1A,2A |
| Working temperature | 0~50℃ |
| Working humidity | 5%-95% |
| Storage temperature | -40℃~70℃ |
| Storage humidity | 5%~95%(no-condensing) |
Application
* Extend your Ethernet connection up to 0~120km away using fiber
optics.
* Creates an economical Ethernet-fiber/copper-fiber link for
connecting remote sub-networks to larger fiber optic
networks/backbones.
* Converts Ethernet to fiber, fiber to copper/Ethernet, ensuring
optimum network Scalability for connecting two or more Ethernet
network nodes (e.g. connecting two buildings on the same campus).
* Designed to provide high-speed bandwidth for demanding large
scale work groups that require expansion of Gigabit Ethernet
Network.
* Intelligent transportation supervisory system (ITS)
* High-speed Way supervisory/Tele-Communication System
* Large corporations, network security monitoring system,
multifunction system
*Long-distance Muti-media Schooling, Campus monitoring, long
distance broadcast television transmission system.
