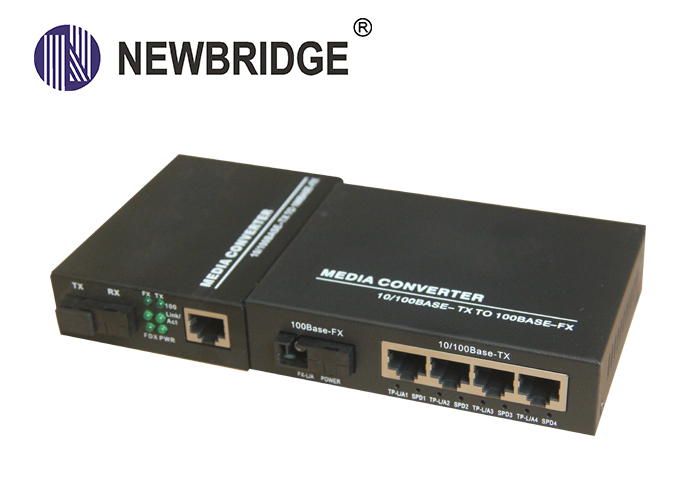

10 100M Media Converter,20KM single fiber single mode SC port with 4 RJ45 Switch

Feature

The suit of 10/100M IP Switch :
1X4 10/100M IP Switch +1*1 10/100M optical port(A) &
1X1 10/100M media converter(B)
1.10/100M single fiber single mode,1310TX/1550RX,SC port,0~20KM;
2.External power supply: DC/5V,AC/100-240V;

Specification

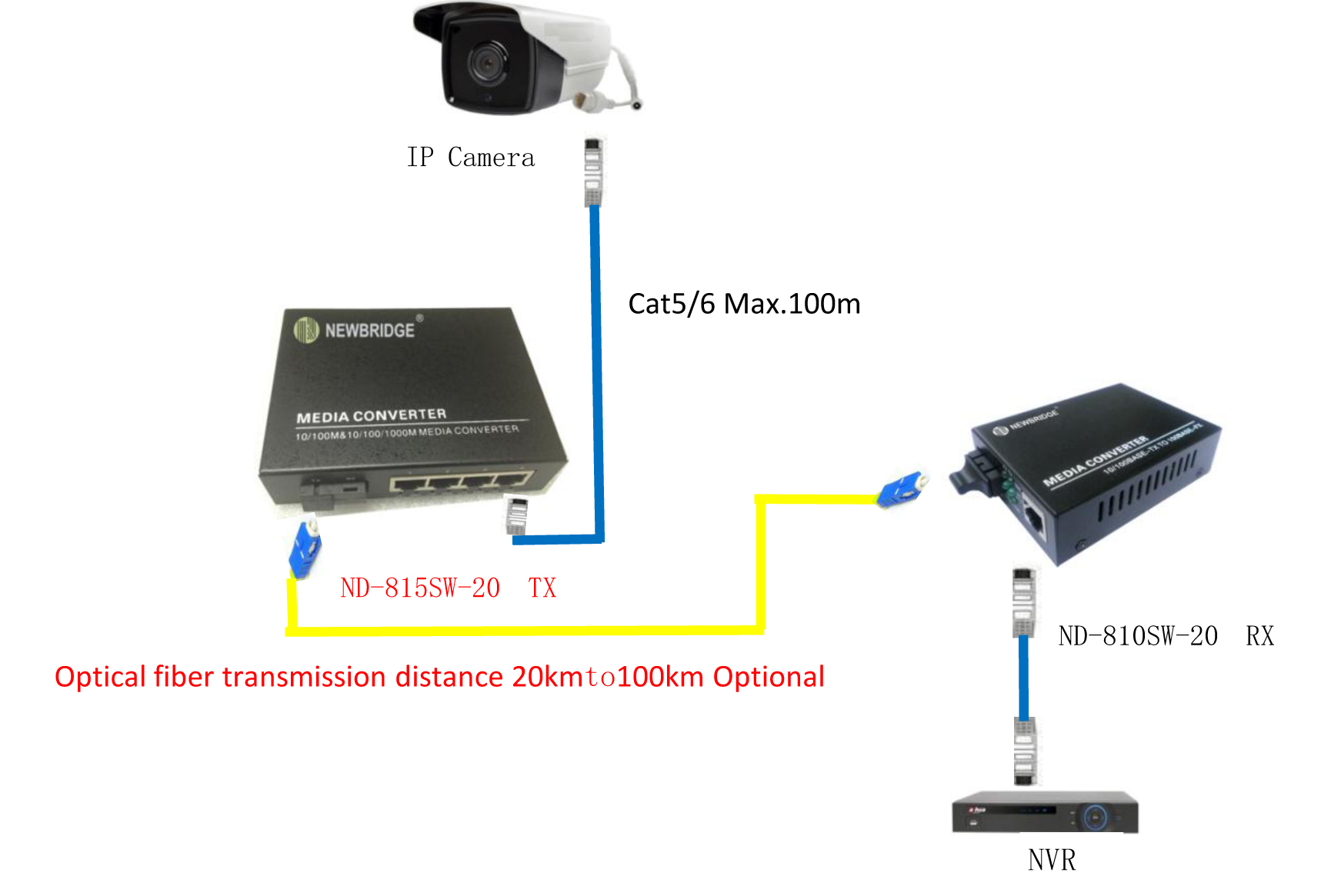

Connection Diagram

Order info

Who We Are?

Shenzhen Newbridge Communication Equipment Co. Ltd (short title: Newbridge) is one High-technology manufacturer and found in 2004, located in Shenzhen .Our product is controlled according to the standard of ISO9001 and FCC and CE etc. we have been absorbed in developing, designing, manufacturing and selling cctv security products and Optical network communication e.g. HD-SDI cameras, HD-SDI transmission, video fiber transmission, Ethernet media converter etc.

About Our Factory

Newbridge based on Shenzhen is certified by ISO9001:2000, we have been founde in 2004 .We have three product lines, and the first line is SMT line (surface Mounting Technology). there are three sets SMT high-speed device , two sets full automatic screen printer and one sets reflow Soldering in this line .daily output is up to 20 million dots per 12 hours. The second line is Plug-in lines. There is one sets Wave Soldering, Shearing machine and full function test equipment. The third line is assembly line, the last heat aging and test are the strictest.
