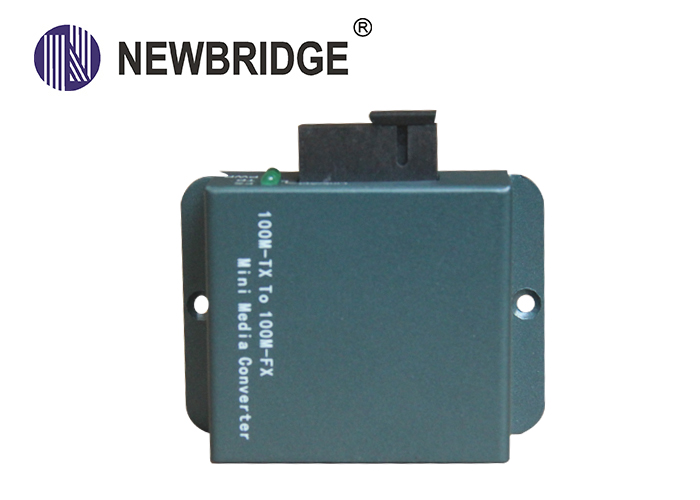

10 100M Induatrial Media Converter Dual Power 12V External Power Supply

Model	ND-X815MSW
Description	1CH optical port+1CH RJ45+2CH 12Vpower port
transmission rate	10/100Mbps
wave length	TX1310nm/RX1550nm
transmission distance	0～20km
the fifth twisted-pair transmit distance	0～100m
electrical interface	1×RJ45
fiber connector	Single mode single fiber,SC port
power port	2×DC12V
Flow control approach	Dynamic data transmission, Full/half duplex
MTBF	Over 100,000 hours
Power supply	External power supply
Power input	AC100 ～ 240V to DC12V input
Power consumption	2.5 w
Storage temperature	-40℃～80℃
Case meterial	Iron shell
Demension	69mm×50mm×24mm
Weight	0.2KGS

This product for intelligent products, high and low temperature resistance (-40 ℃ ~ 80 ℃), lightning protection, anti-static, small volume, dual DC12V, directly supply power to media converter , and then from the second DC link into the camera, power supply to cameras.

Panel Descriptions :

Who We Are?

Shenzhen Newbridge Communication Equipment Co. Ltd (short title: Newbridge) is one High-technology manufacturer and found in 2004, located in Shenzhen .Our product is controlled according to the standard of ISO9001 and FCC and CE etc. we have been absorbed in developing, designing, manufacturing and selling cctv security products and Optical network communication e.g. HD-SDI cameras, HD-SDI transmission, video fiber transmission, Ethernet media converter etc.

About Our Factory

Newbridge based on Shenzhen is certified by ISO9001:2000, we have been founde in 2004 .We have three product lines, and the first line is SMT line (surface Mounting Technology). there are three sets SMT high-speed device , two sets full automatic screen printer and one sets reflow Soldering in this line .daily output is up to 20 million dots per 12 hours. The second line is Plug-in lines. There is one sets Wave Soldering, Shearing machine and full function test equipment. The third line is assembly line, the last heat aging and test are the strictest.
