AC 240V Single Mode dual Fiber To Ethernet Media Converter 2 4 Port 10 100 1000M RJ45

Description
Fiber media converter, or fiber converter, media converter, or Ethernet fiber converter, is designed to extend the copper limit of 100 meters and gets Ethernet connected to 120km max on fiber optics Fiber media converter is a simple networking device that connects two dissimilar media types such as copper twisted pair and fiber optics

Feature

1. Wavelength Division Multiplexing (WDM), Tx and Rx on 1 fiber
2. 1000BASE-FX FIBER to 10/100/1000BASE-T COPPER Ethernet conversion
3. 1600byte super data packet transmission
4. Full duplex-flow control, Half duplex-back pressure
5. Link fault pass through (LFPT)
6. Full- positioned LEDs to indicate power and network status

Specification

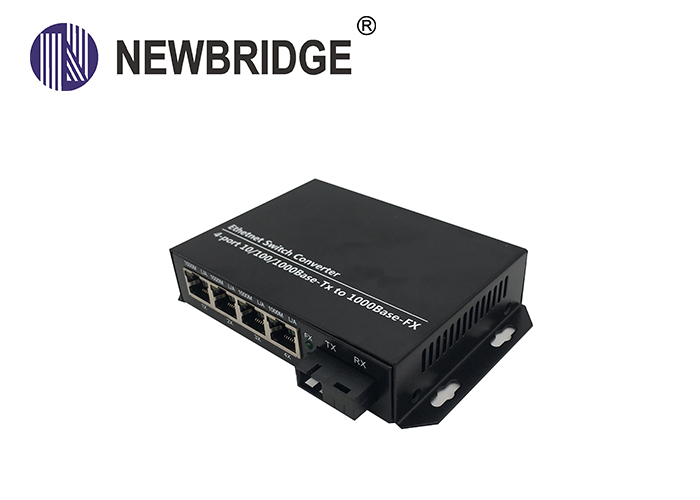

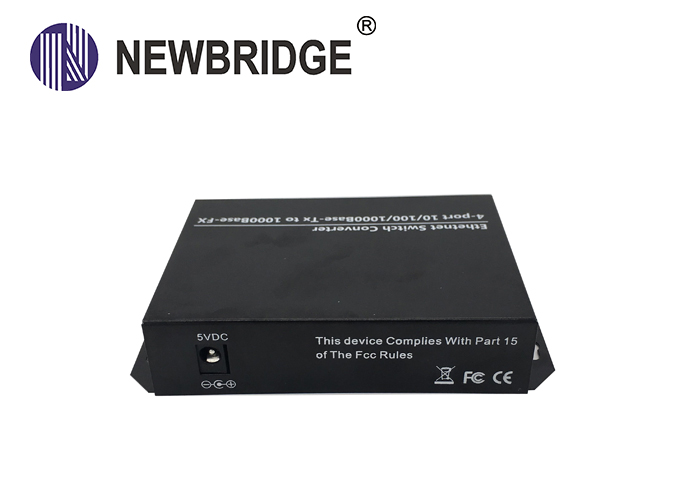

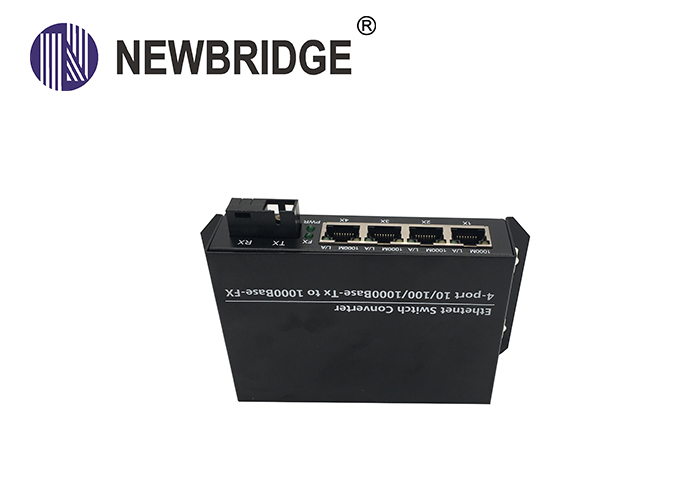

2 +4 Port 10/100/1000M RJ45 port media converter
♦2 port 10/100/1000M fiber ,4 port 10/100/1000M RJ45 ,
♦Dual fiber single mode 1310TX/1550RX,SC,0~20KM,stand alone type,
♦External power supply,DC/5V,AC/100-240V,
♦Through the optical fiber cascaded multiple lans

Order info

Who We Are?

Shenzhen Newbridge Communication Equipment Co. Ltd (short title: Newbridge) is one High-technology manufacturer and found in 2004, located in Shenzhen .Our product is controlled according to the standard of ISO9001 and FCC and CE etc. we have been absorbed in developing, designing, manufacturing and selling cctv security products and Optical network communication e.g. HD-SDI cameras, HD-SDI transmission, video fiber transmission, Ethernet media converter etc.

About Our Factory

Newbridge based on Shenzhen is certified by ISO9001:2000, we have been founde in 2004 .We have three product lines, and the first line is SMT line (surface Mounting Technology). there are three sets SMT high-speed device , two sets full automatic screen printer and one sets reflow Soldering in this line .daily output is up to 20 million dots per 12 hours. The second line is Plug-in lines. There is one sets Wave Soldering, Shearing machine and full function test equipment. The third line is assembly line, the last heat aging and test are the strictest.
