KVM USB extender ESD protection high resolution over 20KM singnal up 1920 x1080 @60Hz VGA HDMI extender

1. Overview

Newbridge® The Extender could transmission high-definition video long distance through a single cable , while support for USB keyboard and mouse transmission, external independent audio and other functions, can adapt to a variety of complex applications. The device has a superior image processing and transmission capacity, so that the signal transmission more smooth and stable, it is a good solution with a reliable, high-performance, efficient VGA, keyboard and mouse signals to extend the way.

2. Features

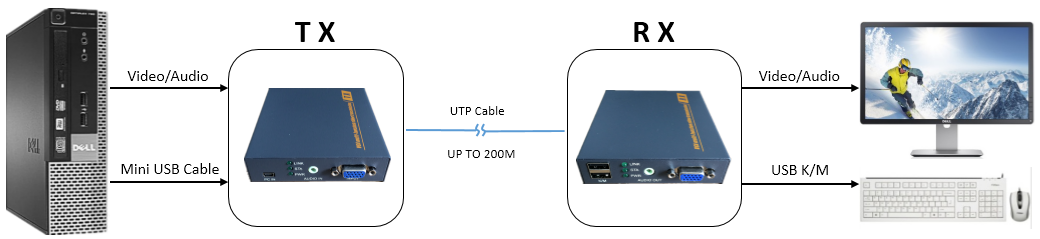

3. Application Diagram

4．Specification

5.Ordering information

Who We Are?

Shenzhen Newbridge Communication Equipment Co. Ltd (short title: Newbridge) is one High-technology manufacturer and found in 2004, located in Shenzhen .Our product is controlled according to the standard of ISO9001 and FCC and CE etc. we have been absorbed in developing, designing, manufacturing and selling cctv security products and Optical network communication e.g. HD-SDI cameras, HD-SDI transmission, video fiber transmission, Ethernet media converter etc.

About Our Factory

Newbridge based on Shenzhen is certified by ISO9001:2000, we have been founde in 2004 .We have three product lines, and the first line is SMT line (surface Mounting Technology). there are three sets SMT high-speed device , two sets full automatic screen printer and one sets reflow Soldering in this line .daily output is up to 20 million dots per 12 hours. The second line is Plug-in lines. There is one sets Wave Soldering, Shearing machine and full function test equipment. The third line is assembly line, the last heat aging and test are the strictest.
