1ch HDMI fiber extender(Optical transceiver) with IR control FC
20KM
Media converters can be used anywhere in the network to integrate
newer technology with existing equipment to support new
applications, technologies and future growth. Instead of costly,
across-the-board upgrades, media converters can extend the
productive life of the existing cabling as well as the active
equipment.
Features
Support HDMI 1.3/HDCP1.1 & 1.2
It supports fiber transmission at the same time.
Support point to point, point to multipoint, and transmission mode
to support infrared extension, you can use the infrared remote
control to control the set-top box or blue light at the receiving
site.
Pure hardware design, plug and play, no additional software needs
to be installed.
install

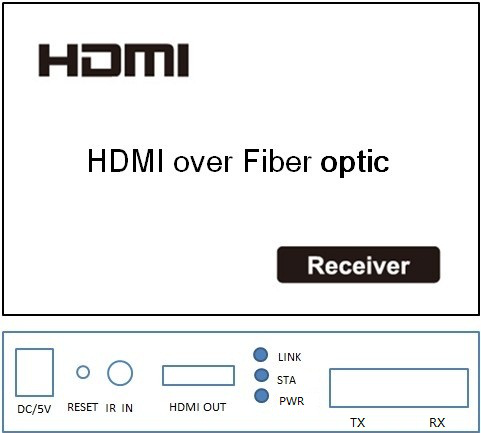

Use the HDMI line to connect the HDMI signal source to the 8110HT
and 8110HR output to the display device.
Connects a pair of SC connectors of a pair of fiber optic jumpers
to the SC port of the video transmission device. It is noted that
both ends of the same fiber must be connected to the TX and RX
ports of the optical fiber transceiver interface, and the other end
must be interconnected, otherwise the fiber can not connect.
Configure infrared back control function, the infrared receiving
head is connected with HDMI TX, HDMI RX. and access the infrared
emission head will launch its head at the infrared receiving port
need to control equipment.
Equipment electrified
At this time, the POWER light of the video transmission equipment
is bright, and the other lights are first flashing in sequence
according to the order of self inspection. When the STA lights
flicker, the device transmits video.
