Fiber optic extender ip+power supply Ethernet Over Coax Extender
with 2 BNC ports & 1 rj45 port
Overview :
Our IP extender is designed to extend the distance over coax cable
, twisted pair and telephone line up to 2000m .It apply to security
link over coax technology to realize HD IP and SD IP video
surveillance by utilizing
existed analog system .
This device is used as pair. One is transmitter , another is
receiver. It is another main feature to support up to 60
transmitters parallel or series connection . So it is easy to
networking.
Our device realize upgrading from analog surveillance system to HD
IP surveillance easily .
Feature :
◆ Extend HP IP signal over coax cable, twisted pair,telephone
line,power cable (two wire)
◆ Convert network signal to analog video signal to extend
transmission distance up to 2000m
◆ Support HD IP resolution :720P,960P,1080P HD IP and SD IP
resolution .
◆ Max Data bandwidth:100Mbps
◆ Support Auto-networking over series or shunt connection up to 60
piece
◆ Support plug and play function
◆ Apply to three class lightning-proof configuration
Technical specification :
| Type | ND-5105-TX transmitter | ND-5105-RX Receiver |
| Input | RJ-45 | BNC , 75ohm |
| Output | BNC, 75 ohm | RJ-45 |
| Ethernet port | RJ-45 |
| Max data | 100M |
| Standard | IEEE 802.3 10BaseT, 802.3u 100BaseTX,802.3u 100BaseFX |
| Compliance | TCP/IP , Auto-learning MDI/MDIX, Auto-sense Half or full duplex |
| Output--CVBS | BNC , 75ohm |
| Max distance (Coax cable ) | 400M——92Mbps；
1000M——74Mbps； 50Mbps (twisted pair) , 40Mbps (Telephone line)
2000M——30Mbps |
| Work temperature | -40 ℃～+85 ℃ |
| Relative humidity | 0～95% (no cond) |
| Storage temperature | -60℃～+100℃ |
| Power consumption | 5W(Input:DC12V 400mA) |
| Size | 98x 65x28 mm |
| Power supply | AC85-260V/50Hz/60Hz. DC12V,2.1A |
Layout
Top views:

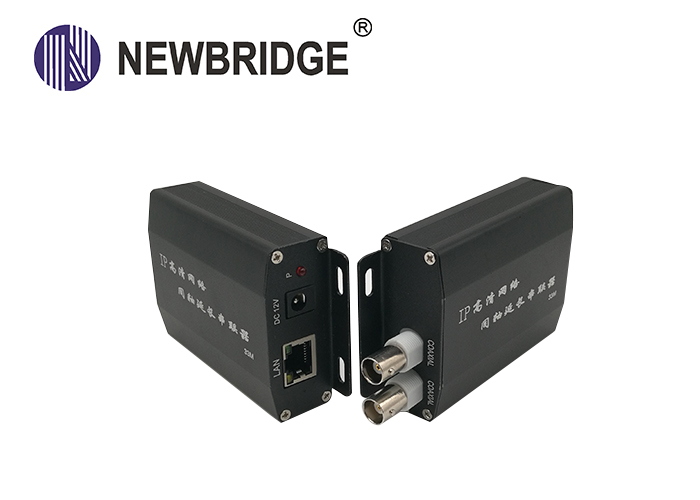

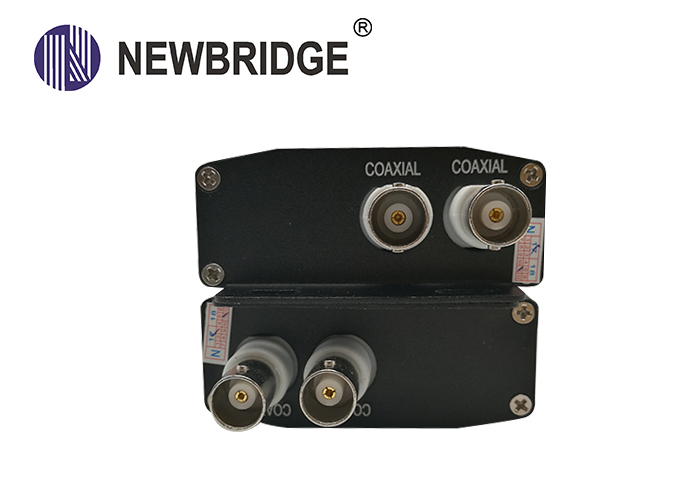

Left panel of transmitter
Rift panel of transmitter

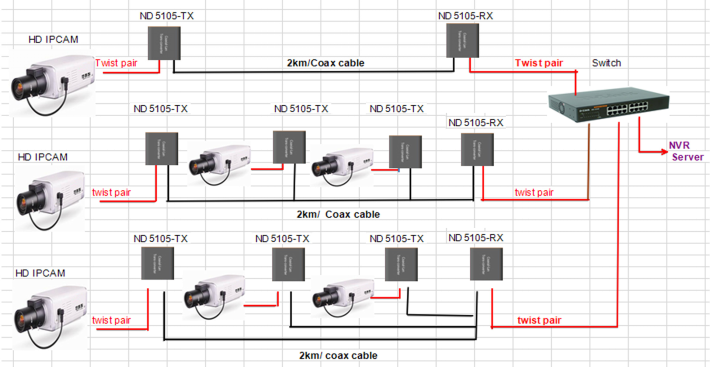

Typical application :
Order Information
| Part No | Description of product | Unit |
| ND-5105-TX | transmitter | 1pcs |
| ND-5105-RX | Receiver | 1pcs |
